SPECIFICATIONS
| Max. Working Height | 40.35 m |
| Max. Platform Height | 38.35 m |
| Max Operating Range | 23.75 m |
| Overall length(Stowed) | 16 m |
| Overall Width (Stowed) | 2.49 m |
| Overall Height (Stowed) | 2.83 m |
| Overall Length (Transport) | 11.83 m |
| Overall Width (Transport) | 2.3 m |
| Overall Height (Transport) | 2.55 m |
| Platform Size (LxW) | 2.4×0.9×1.1m |
| Turntable Tailswing(Raised) | 2.05 m |
| Tyres | 445/50D710（Foam Filled) |
| Platform Load(Unrestricted/Restricted) | 454/300 kg |
| Gradeability | 45% |
| Max. Working Slope | X-5°/Y-5° |
| Turret Rotation | 360° Continuous |
| Drive Steering Type | 4WD x 2WS |
| Battery Capacity | 83.2V/608Ah |
| Charger | 80V/80A |
| Hydraulic Oil Tank | 200 L |
| Total Weight | 20300 kg |

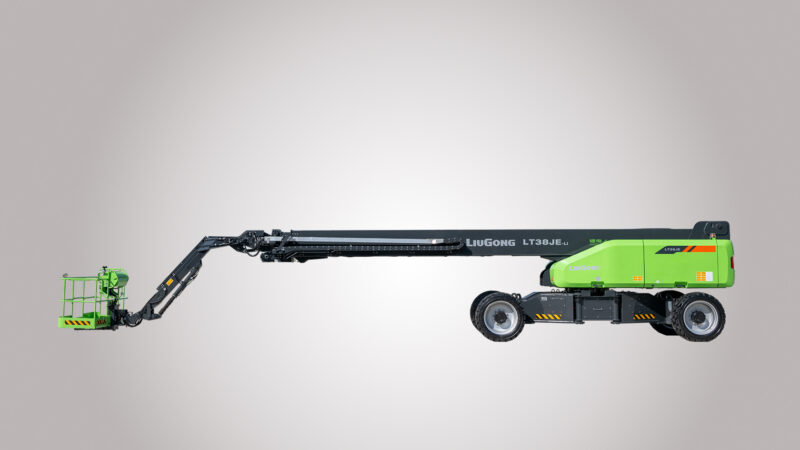

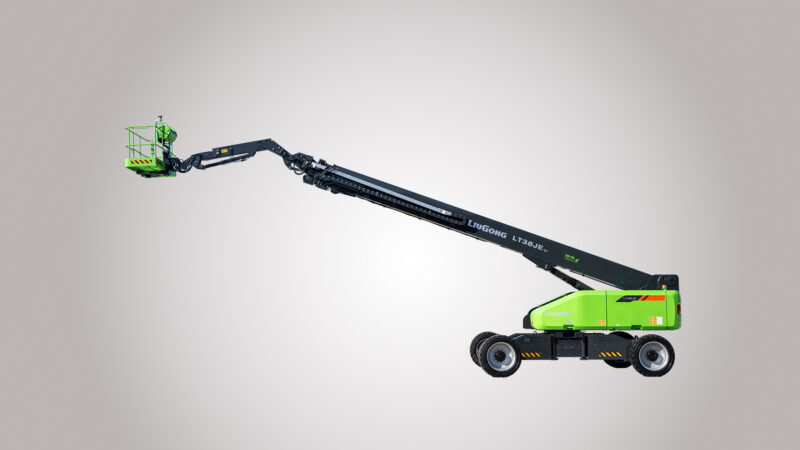

GALLERY
