SPECIFICATIONS
| Max. Working Height | 34.2 m |
| Max. Platform Height | 32.2 m |
| Max Operating Range | 20.9 m |
| Overall length(Stowed) | 12.8 m |
| Overall Width (Stowed) | 2.49 m |
| Overall Height (Stowed) | 2.9 m |
| Overall Length (Transport) | 11.7 m |
| Overall Width (Transport) | 2.25 m |
| Overall Height (Transport) | 2.66 m |
| Turntable Tailswing (Stowed) | 1.49 m |
| Platform Size (LxW) | 2.4×0.91×1.1 m |
| Tyres | 18-625 |
| Platform Load(Unrestricted/Restricted) | 300/454 kg |
| Gradeability | 45% |
| Max. Working Slope | X-5°/Y-5° |
| Turret Rotation | 360° Continuous |
| Drive Steering Type | 4WD x 2WS |
| Diesel Engine | YuChai YCF3075-T302/55.8kW |
| Diesel Tank | 150 L |
| Hydraulic Oil Tank | 170 L |
| Total Weight | 17500 kg |

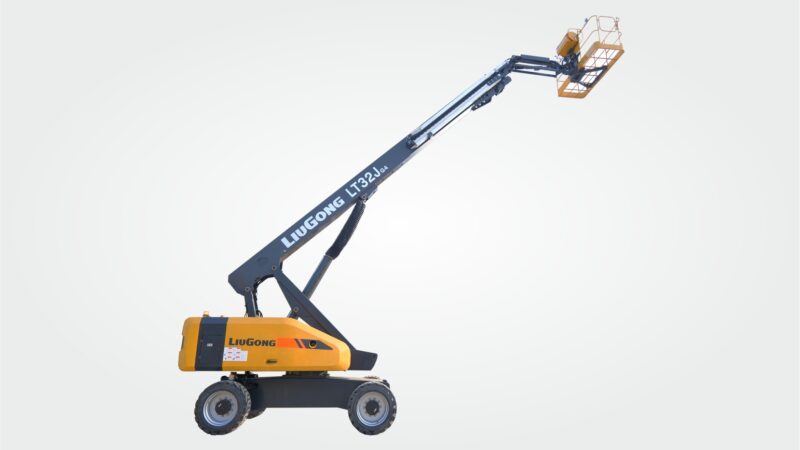

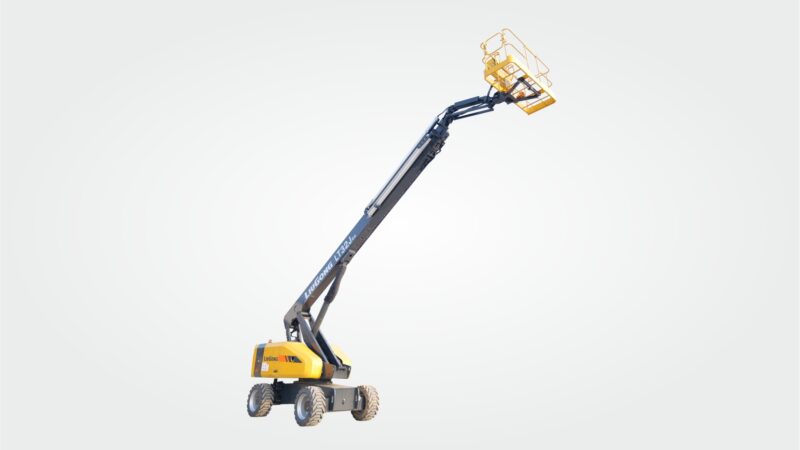

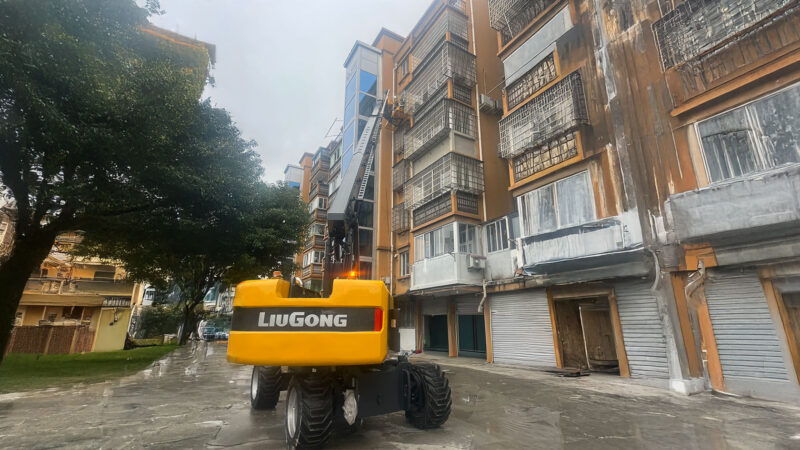

GALLERY
