SPECIFICATIONS
| Max. Working Height | 10.8 m |
| Rated Load on Working Platform | 230 kg |
| Overall length/Width | 2.28/0.81 m |
| Max. Platform Height | 8.6 m |
| Min Platform Height | 1.22 m |
| Platform Size (LxW) | 2.28*0.81 m |
| Overall Length | 2.5 m |
| Overall Width (Transport) | 0.85 m |
| Overall Height (Rails Down) | 1.8 m |
| Drive Speed (Stowed) | 2 km/h |
| Drive Speed (Raised) | 0.4 km/h |
| Tire Size | 381 x 127 mm (Solid Non-marking) |
| Turning Radius (Inside/Outside) | 0.24/2.2 m |
| Max.Gradeability | 25% |
| Lift Motor | 24V/3.3kW |
| Rated Load on Working Platform | 230 kg |
| Battery Capacity | 24V/225Ah |
| Charger | 24V/30A |
| Total Weight | 2180 kg |

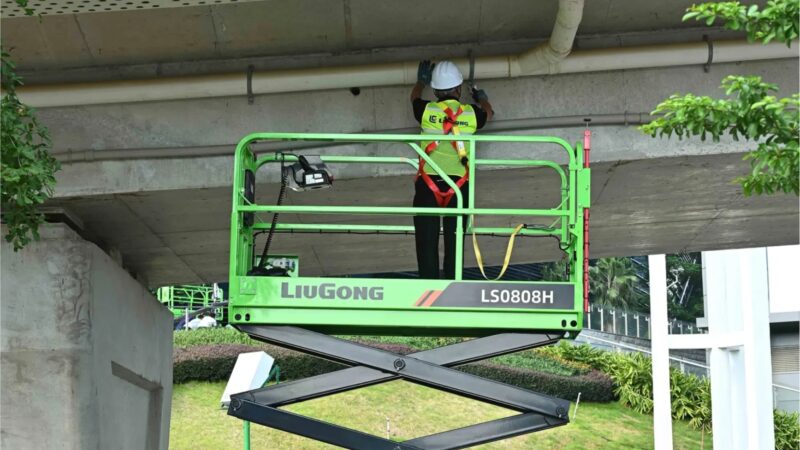

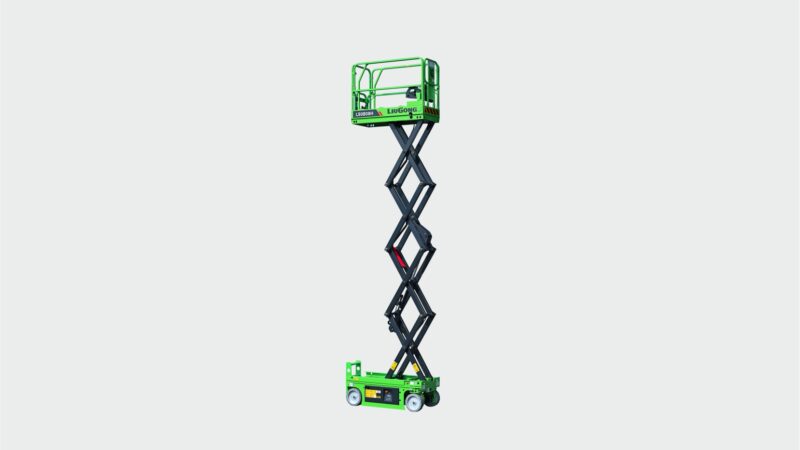

GALLERY
